Material and home-pawn signatures used by database search prefilters. More...

#include "scid/core/board.h"
#include <algorithm>
#include <cassert>
#include <cstdint>
#include <string>
#include <utility>

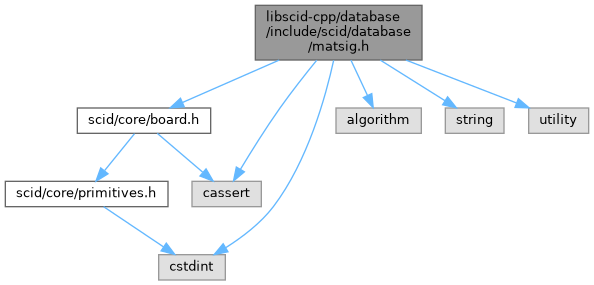

Include dependency graph for matsig.h:

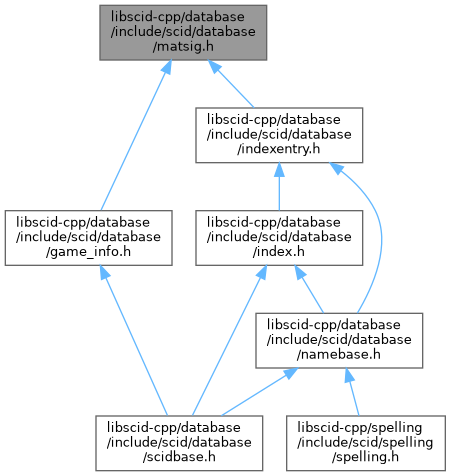

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	scid
	Public namespace for libscid.

namespace	scid::database
	Database sessions, metadata, names, filters, trees and storage.

Macros
#define	MATSIG_FlipColor(x) ((x) >> 12) \| (((x) & 0x00000FFF) << 12)
	Returns `x` with White and Black material fields exchanged.

#define	MATSIG_Has_WQ(x) ((x) & MASK_WQ)
	Returns non-zero when `x` contains at least one White queen.

#define	MATSIG_Has_BQ(x) ((x) & MASK_BQ)
	Returns non-zero when `x` contains at least one Black queen.

#define	MATSIG_Has_WR(x) ((x) & MASK_WR)
	Returns non-zero when `x` contains at least one White rook.

#define	MATSIG_Has_BR(x) ((x) & MASK_BR)
	Returns non-zero when `x` contains at least one Black rook.

#define	MATSIG_Has_WB(x) ((x) & MASK_WB)
	Returns non-zero when `x` contains at least one White bishop.

#define	MATSIG_Has_BB(x) ((x) & MASK_BB)
	Returns non-zero when `x` contains at least one Black bishop.

#define	MATSIG_Has_WN(x) ((x) & MASK_WN)
	Returns non-zero when `x` contains at least one White knight.

#define	MATSIG_Has_BN(x) ((x) & MASK_BN)
	Returns non-zero when `x` contains at least one Black knight.

#define	MATSIG_Has_WP(x) ((x) & MASK_WP)
	Returns non-zero when `x` contains at least one White pawn.

#define	MATSIG_Has_BP(x) ((x) & MASK_BP)
	Returns non-zero when `x` contains at least one Black pawn.

#define	MATSIG_HasQueens(x) ((x) & (MASK_WQ \| MASK_BQ))
	Returns non-zero when either side has a queen.

#define	MATSIG_HasRooks(x) ((x) & (MASK_WR \| MASK_BR))
	Returns non-zero when either side has a rook.

#define	MATSIG_HasBishops(x) ((x) & (MASK_WB \| MASK_BB))
	Returns non-zero when either side has a bishop.

#define	MATSIG_HasKnights(x) ((x) & (MASK_WN \| MASK_BN))
	Returns non-zero when either side has a knight.

#define	MATSIG_HasPawns(x) ((x) & (MASK_WP \| MASK_BP))
	Returns non-zero when either side has a pawn.

#define	MATSIG_Count_WQ(x) (((x) & MASK_WQ) >> SHIFT_WQ)
	Returns the White queen count from `x`.

#define	MATSIG_Count_BQ(x) (((x) & MASK_BQ) >> SHIFT_BQ)
	Returns the Black queen count from `x`.

#define	MATSIG_Count_WR(x) (((x) & MASK_WR) >> SHIFT_WR)
	Returns the White rook count from `x`.

#define	MATSIG_Count_BR(x) (((x) & MASK_BR) >> SHIFT_BR)
	Returns the Black rook count from `x`.

#define	MATSIG_Count_WB(x) (((x) & MASK_WB) >> SHIFT_WB)
	Returns the White bishop count from `x`.

#define	MATSIG_Count_BB(x) (((x) & MASK_BB) >> SHIFT_BB)
	Returns the Black bishop count from `x`.

#define	MATSIG_Count_WN(x) (((x) & MASK_WN) >> SHIFT_WN)
	Returns the White knight count from `x`.

#define	MATSIG_Count_BN(x) (((x) & MASK_BN) >> SHIFT_BN)
	Returns the Black knight count from `x`.

#define	MATSIG_Count_WP(x) (((x) & MASK_WP) >> SHIFT_WP)
	Returns the White pawn count from `x`.

#define	MATSIG_Count_BP(x) (((x) & MASK_BP) >> SHIFT_BP)
	Returns the Black pawn count from `x`.

Material Signature Layout
From high to low bits, the layout is: bits 22-23: White queens bits 20-21: White rooks bits 18-19: White bishops bits 16-17: White knights bits 12-15: White pawns bits 10-11: Black queens bits 08-09: Black rooks bits 06-07: Black bishops bits 04-05: Black knights bits 00-03: Black pawns Pawns can represent ordinary counts from zero to eight. Other piece counts are saturated at three when signatures are made from a position.
#define	SHIFT_BP 0

#define	SHIFT_BN 4

#define	SHIFT_BB 6

#define	SHIFT_BR 8

#define	SHIFT_BQ 10

#define	SHIFT_WP 12

#define	SHIFT_WN 16

#define	SHIFT_WB 18

#define	SHIFT_WR 20

#define	SHIFT_WQ 22

#define	MASK_BP 0x0000000F
	Mask for black pawns.

#define	MASK_BN 0x00000030
	Mask for black knights.

#define	MASK_BB 0x000000C0
	Mask for black bishops.

#define	MASK_BR 0x00000300
	Mask for black rooks.

#define	MASK_BQ 0x00000C00
	Mask for black queens.

#define	MASK_WP 0x0000F000
	Mask for white pawns.

#define	MASK_WN 0x00030000
	Mask for white knights.

#define	MASK_WB 0x000C0000
	Mask for white bishops.

#define	MASK_WR 0x00300000
	Mask for white rooks.

#define	MASK_WQ 0x00C00000
	Mask for white queens.

Typedefs
typedef std::uint32_t	scid::database::matSigT
	Compact material signature used for fast database search prefilters.

Functions
scid::core::uint	scid::database::matsig_getCount (matSigT m, scid::core::pieceT p)
	Returns the count of piece `p` stored in material signature `m`.

matSigT	scid::database::matsig_setCount (matSigT m, scid::core::pieceT p, scid::core::uint count)
	Returns `m` with the count for piece `p` replaced by `count`.

std::string	scid::database::matsig_makeString (matSigT matsig)
	Returns a compact textual representation of `matsig`.

bool	scid::database::matsig_isReachable (matSigT mStart, matSigT mTarget, bool promos, bool upromo)
	Returns true when `mStart` could legally decay into `mTarget`.

bool	scid::database::matsig_isReachablePawns (matSigT mStart, matSigT mTarget)
	Returns true when `mStart` could decay into `mTarget` considering pawns only.

matSigT	scid::database::matsig_Make (const scid::core::byte *materialCounts)
	Builds a material signature from a scid::core::Position material array.

bool	scid::database::hpSig_PossibleMatch (scid::core::uint hpSig, const scid::core::byte *changeList)
	Returns true when a game's home-pawn change list could reach `hpSig`.

bool	scid::database::hpSig_Prefix (const scid::core::byte changeListA, const scid::core::byte changeListB)
	Returns true when either home-pawn change list is a prefix of the other.

scid::core::uint	scid::database::hpSig_Final (const scid::core::byte *changeList)
	Returns the final home-pawn signature reached after applying `changeList`.

scid::core::uint	scid::database::hpSig_AddPawn (scid::core::uint hpSig, scid::core::colorT color, scid::core::fyleT fyle)
	Returns `hpSig` with the home-pawn bit for `color` and `fyle` set.

scid::core::uint	scid::database::hpSig_ClearPawn (scid::core::uint hpSig, scid::core::colorT color, scid::core::fyleT fyle)
	Returns `hpSig` with the home-pawn bit for `color` and `fyle` cleared.

std::pair< std::uint16_t, std::uint16_t >	scid::database::hpSig_make (const scid::core::pieceT *board)
	Creates a 16-bit bitmap of the pawns missing from their home ranks.

bool	scid::database::hpSig_match (int hpSig, int nMoved, const scid::core::byte *changeList)
	Returns true when `changeList` can explain the requested missing-pawn bitmap and moved-pawn count.

Variables
const matSigT	scid::database::MASK_BY_PIECE [16]
	Piece-code indexed masks for extracting or replacing a count.

const scid::core::uint	scid::database::SHIFT_BY_PIECE [16]
	Piece-code indexed bit shifts for extracting or replacing a count.

const matSigT	scid::database::MATSIG_Empty = 0
	Material signature for an empty board.

const matSigT	scid::database::MATSIG_StdStart
	Material signature for the standard chess starting position.

const scid::core::uint	scid::database::HPSIG_Empty = 0x0
	Home-pawn signature with no pawns still on their original home squares.

const scid::core::uint	scid::database::HPSIG_StdStart = 0xFFFF
	Home-pawn signature for the starting position.

Detailed Description

Material and home-pawn signatures used by database search prefilters.

These signatures are deliberately lossy. They let the database reject impossible candidate games before decoding movetext, but they do not prove that a game contains a searched position. Material signatures answer "could these piece counts still be present?", while home-pawn signatures answer "could these original pawns have moved?". The exact board search still has to decode candidate games that pass these cheap tests.
